HEINZMANN REGULATEURS EUROPA

Advanced systems for engines, turbines, and tomorrow

HEINZMANN and HEINZMANN Regulateurs Europa have nearly seventy years’ experience of providing control solutions ranging from single diesel engine governors through to complete control systems for multi-generator installations. HEINZMANN Regulateurs Europa specialises in design, engineering, manufacturing, installation and commissioning services to meet the customer specific requirements including consultancy and surveying services to assist in achieving a working solution.

HEINZMANN and HEINZMANN Regulateurs Europa's past projects have included generator and power control solutions for many different applications. Included banks, hospitals, hotels, telecommunications centres, airports, water treatment works, sewage treatment works, nuclear power stations and process plants. Customers for these systems are not only located in the UK and Europe but around the world; from Brazil to India and Ireland to Australia.

Generator Management

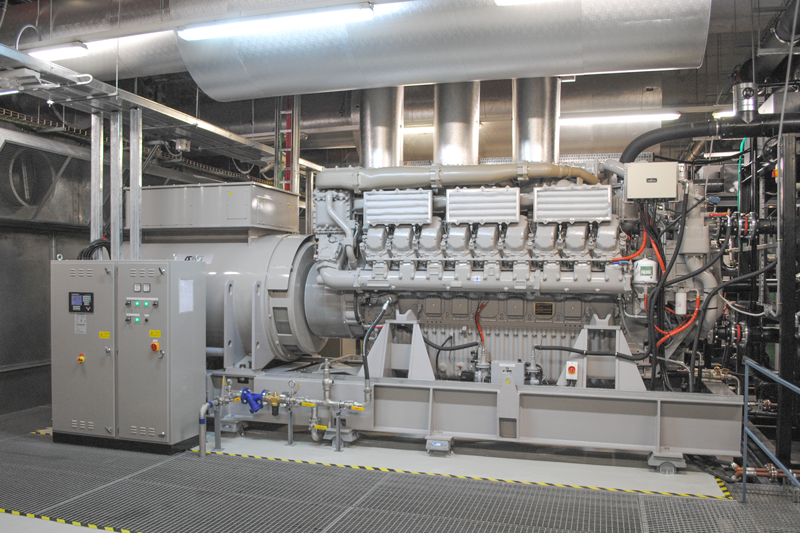

Genset Control
Generator management systems from HEINZMANN Regulateurs Europa are based on well proven digital governors. In addition to the tried-and-tested Viking35 systems, the new XIOS^GenSet governor is an all-rounder suitable for all generator systems, as it combines all the relevant advantages of combustion engine governors and generator governors. The system can be fitted in control cabinets in accordance with industrial standards, and can include PLC controllers, HMI user interfaces, integrated speed control and numerous other functions. Communication can take place via numerous interfaces using different protocols.

In addition to engine and generator monitoring and protection, the system provides speed control, multiple communication interfaces and protocols for remote control and monitoring, as well as multiple generator control functions:
Active and reactive load control

Start/Stop sequence control

Synchronising
Fuel selection

Power metering

Voltage control
Viking Control
The Viking35 is an ECU with a high number of I/Os, suitable for a wide range of complex control and monitoring tasks in ships, locomotives and generators. Viking35 has established itself as the ideal solution on the market for applications involving complex load sharing in particular.
- User-friendly Viking Vision software or a corresponding hand-held or panel mount device can be used to edit or display control and status parameters in real time.
- It is combined with hydraulic actuators from REGULATEURS EUROPA.
- Viking35 also meets the requirements of Marine Classification Societies for EXXI approval with its simple and effective power limiting solution.

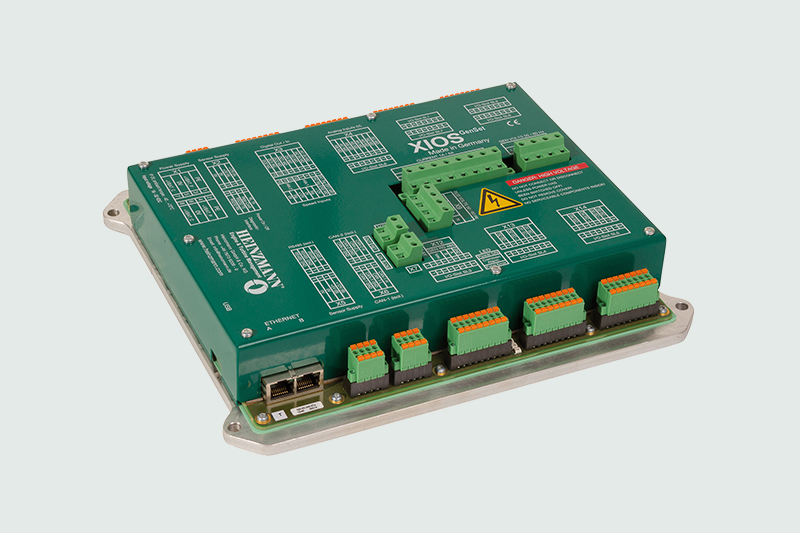

XIOS^GenSet Control
A multi-functional, digital and cost-efficient system solution offering a wide range of solutions for controlling generators as well as protection and monitoring functions. Only a single central governor is required to control the entire genset system. The device’s multi-functional design means it can be used in the best way for each specific customer and the engine and generator control can be configured flexibly. XIOS^GenSet can be used for island and parallel operation as well as for individual or group applications. The system is supplemented by a clear, user-friendly and easy-to-operate HMI.
Customer-specific engine & generator monitoring system, scalable and flexible configuration

PC-based adaptation & HMI monitoring

Genset monitoring and protection functions

Interface with existing analogue load sharing, synchronisation

KW power control, kW load sharing, kVAr load sharing
Voltage adjustment

Cos Phi control

Automatic sequence control

Available as an option with speed governor, CAN, Modbus or SAEJ1939 communication protocol, with real-time alarm & logging function

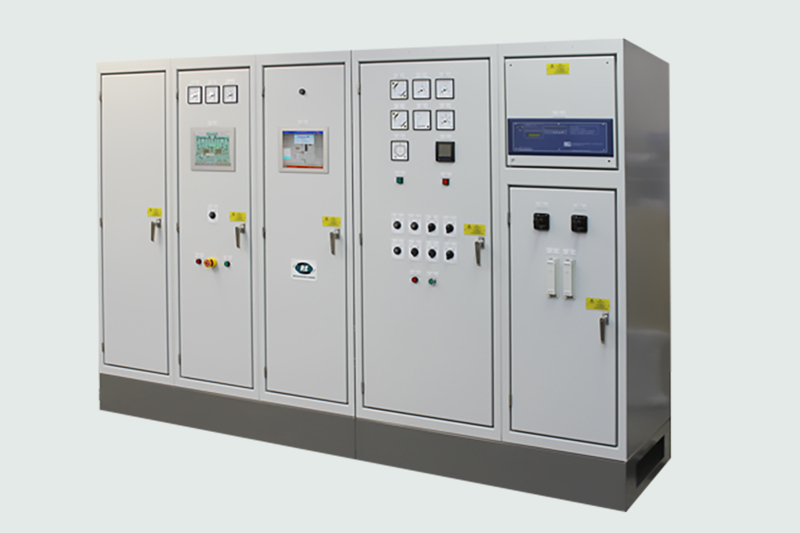

Generator Management Products
HEINZMANN RE systems are designed using the latest PLC technology incorporating fieldbus and serial communications networks and where appropriate, incorporating the latest RE or HEINZMANN products.

The functionality of single engine governors through to complete control systems is tailored to meet the customer’s and end user’s requirements including:
Local engine control panels

Remote engine control panels

Control desks

Remote start/stop

Engine speed governing

Alternator excitation

Manual/auto synchronising
Generator electrical protection

Alarm indication

Electrical data acquisition

Breaker status indication

Digital/analogue instrumentation

Mimic display
