HEINZMANN REGULATEURS EUROPA

Advanced systems for engines, turbines, and tomorrow

HEINZMANN Regulateurs Europa designs power management systems to meet the requirements of the customer. This includes the number of generators, the rating of individual engines, and the engine type including diesel, dual-fuel, gas engines and turbines or the switchboard arrangement (e.g. bus couplers, utility incomers, etc.).

HEINZMANN Regulateurs Europa works closely with the customer to develop control solutions that are tailored to meet every aspect of the application requirements to provide reliable electrical power, that is why our customers choose HEINZMANN Regulateurs Europa Power Management Systems.

Power Management

Scope of functions

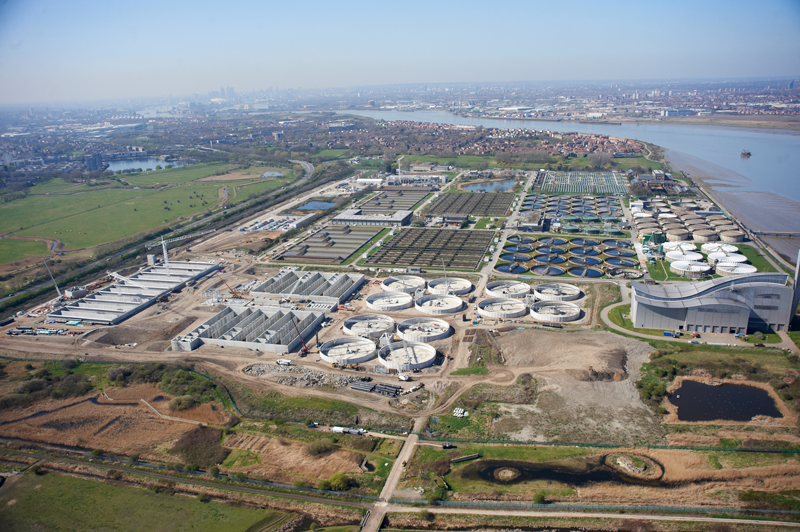

HEINZMANN Regulateurs Europa has many years’ experience of providing power management systems for many sites including some of the UK’s and Europe’s largest waste water treatment works. HEINZMANN RE power management systems are based around the latest PLC and SCADA technology to provide customised solutions that are reliable and retain the flexibility for future expansion plus meet the customer’s requirements for every aspect of the application.

The Power Management System provides automatic control of generators including the following basic functions:
Load dependant call-up & shutdown of generators

Priority order selection

Minimum numbers of sets

Neutral earth control

Active load sharing

Reactive load sharing

Peak lopping operation
Base load operation

Power factor control

Island mode operation

Frequency control

Voltage control

Load shedding

Load application

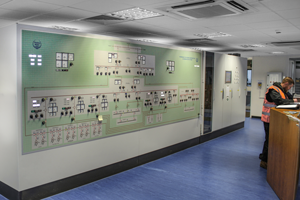

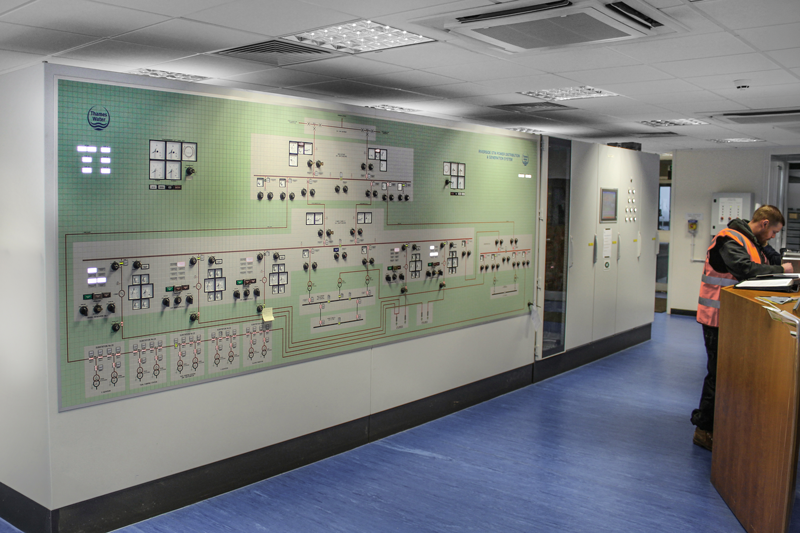

System Design
HEINZMANN RE Power Management Systems are based around the latest PLC and SCADA technology to provide customised solutions that are extremely reliable and retain the flexibility for future expansion.
Load dependant call-up and shutdown

Generator Synchronising control

Circuit breaker close interlocking

Loss of mains protection supervision

Active and reactive load control

Island mode voltage and frequency control

Load shedding and restoration

Generator neutral earth supervision and control

Transformer tap changer supervision
Generator and utility energy cost management

Fault contribution limitation

Interconnector load limitation

Power metering

Alarm annunciation

Data logging

Remote monitoring

Complete manual back-up control and monitoring

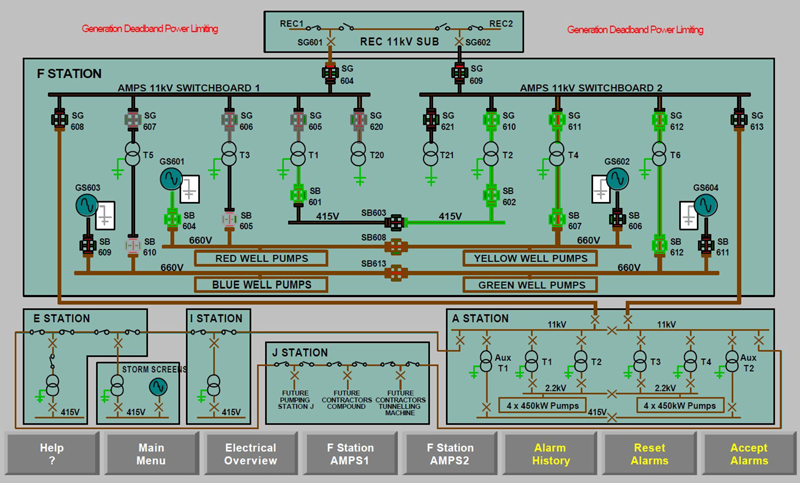

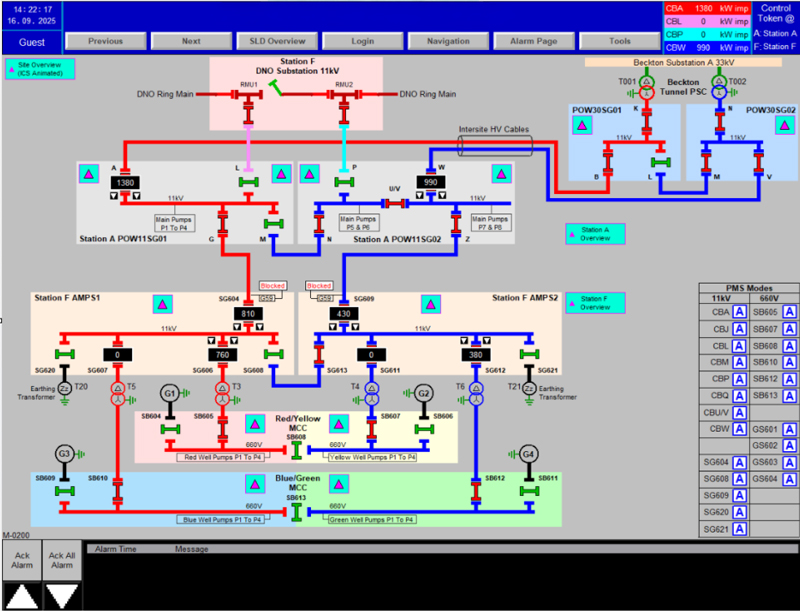

SCADA System Functions
HEINZMANN RE SCADA systems are based around the latest technology to provide customised solutions that are extremely reliable and retain the flexibility for future expansion. The SCADA system can be designed to meet the requirements of the customer.

SCADA systems include:
- Network systems (server / client)
- Autonomous systems
- Panel mount or desktop position location
