Advanced systems for engines, turbines, and tomorrow
HEINZMANN's digital governors are highly valued on account of their flexibility, which means they can meet all customer requirements and prerequisites. Our governor systems are known for their durability and tried-and-tested reliability. They can be used for diesel, gas and dual-fuel engines and turbines of any size, type and make. Alongside our standard products, we can also offer bespoke solutions that are tailored to specific applications.

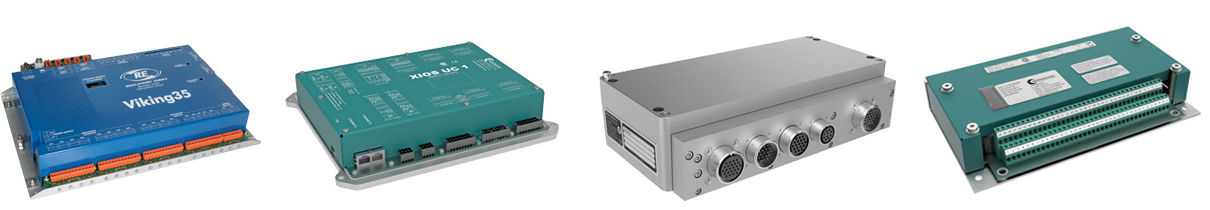

Overview
Viking35
DC 1-03/Dc 1-04
DC 2-02
DC 6.200
THESEUS DGM-02
HEINZMANN governors are recognised for their great reliability and durability along with their excellent performance. Available in a wide range, these speed governors are perfectly configurable in order to meet any application's requirements.
Combined with the appropriate actuator, HEINZMANN control units make up high-quality governor systems for diesel engines, gas engines, dual-fuel engines and gas , water and steam turbines. All of HEINZMANN’s digital governors offer extensive functions that can be programmed using the DcDesk configuration tool.

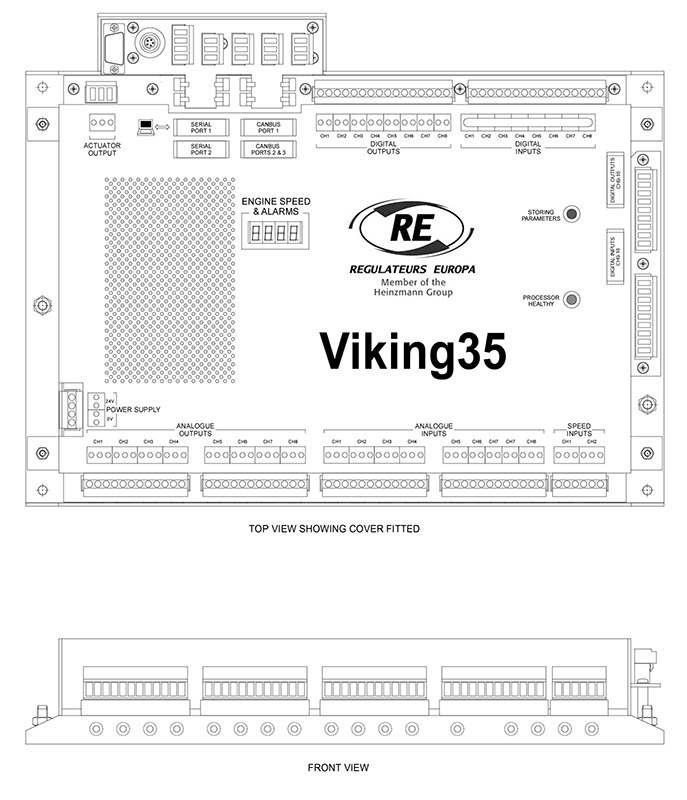

An ECU with a high number of I/Os, suitable for a wide range of complex control and monitoring tasks in ships, locomotives and generators. The Viking35 has established itself as the ideal solution on the market for applications involving complex load sharing in particular. The user-friendly Viking Vision software or a corresponding hand-held device can be used to edit or display control and status parameters in real time. It is combined with hydraulic actuators from REGULATEURS EUROPA.
Technical data
Diesel Engines
Dual Fuel Engines
Turbines
Ships
Locomotives

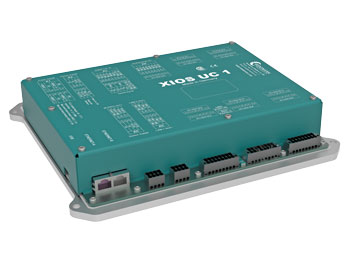

GensetsMulti-functional and modular engine governor with advanced I/O system. Follow-up product for PRIAMOS DC 1-03 / DC 1-04.
Technical data
Diesel Engines
Gas Engines Dual-Fuel Engines Turbines

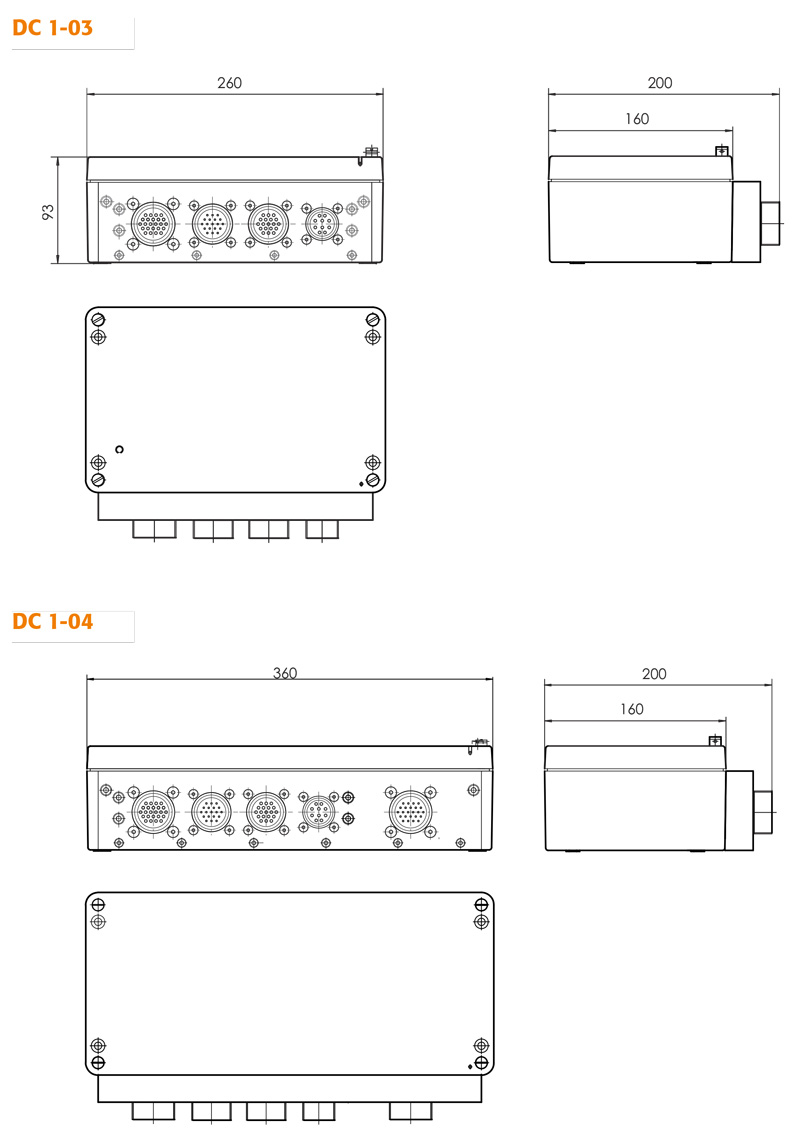

Industrial Vehicles Ships GensetsHEINZMANN’s first generation of digital speed governors, marketed as the PRIAMOS product range.It has now been replaced by our universal control XIOS UC. However, it is still available as a replacement device and spare part.
Technical data
Gas Engines Diesel Engines
Gas Turbines
Steam Turbines Gensets

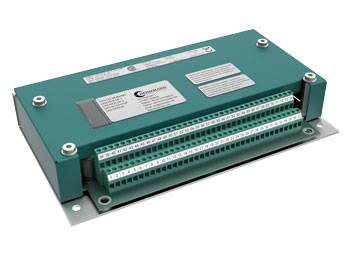

Pump Drives Ships Locomotives Industrial VehiclesMarketed under the name HELENOS, these digital speed governors can be directly combined with all HEINZMANN actuator types with a control torque of up to 40 Nm. The range is also certified to various standards (ATEX, marine, etc.)
Technical data

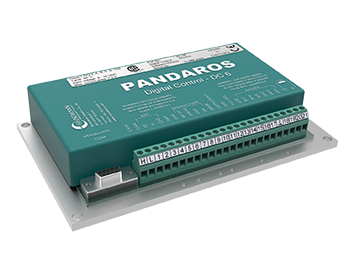

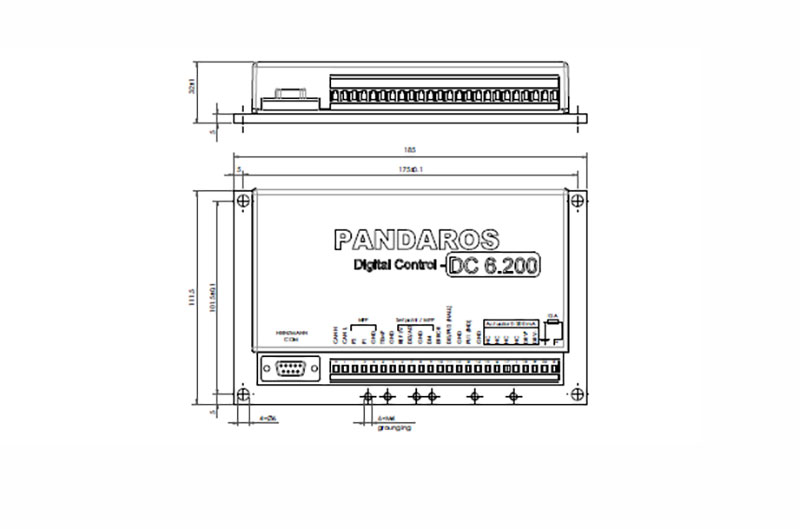

Gas Turbines Steam Turbines Diesel Engines Gas Engines Gensets Pump DrivesDc 6.200 is a version of the DC 6 governor with a reduced output current of up to 200 mA, suitable for smaller proportional electromechanical actuators, e.g. hydraulic actuators.
Technical data
Gas Turbines Steam Turbines

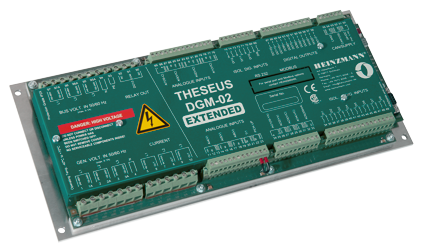

Water Turbines GensetsThis digital generator governor for generators operated as islands or in parallel can run with or without a HEINZMANN speed governor. Four versions are available: BASIC, MEDIUM, EXTENDED and GROUP.
Technical data
BASIC: Low-voltage governor with no adjustment options
MEDIUM: Low-voltage governor with different standard assignments and limited adjustment options
EXTENDED: Generator governor with numerous configuration and adjustment options for every voltage range
GROUP: Generator governor for generators operated as Group-to-Group or Group-to-Mains, with numerous configuration and adjustment options for every voltage range
Gensets
