HEINZMANN Regulateurs Europa can provide controls for marine generators ranging from those used for diesel/electric propulsion, as main auxiliaries or just standby units. HEINZMANN Regulateurs Europa is particularly well known for providing load sharing systems and for complex combined generator/propulsion solutions as required by large suction dredgers.
HEINZMANN
Engine & Turbine Management
HEINZMANN Electric Drives
Robust electric motors
REGULATEURS EUROPA
Control & Monitoring
HEINZMANN China
Control & Actuation
HEINZMANN Automation
Marine Automation
HEINZMANN Australia
Steam Turbine Control
CPK Automotive
Emission Control
Giro Engineering
Diesel Engine Components
HEINZMANN IFT GmbH
Oil Mist Separators and Blow-by Filter Technology
HEINZMANN REGULATEURS EUROPA
Advanced systems for engines, turbines, and tomorrow
Generator Panels
Viking35 Generator Control Panel
Generator Panels

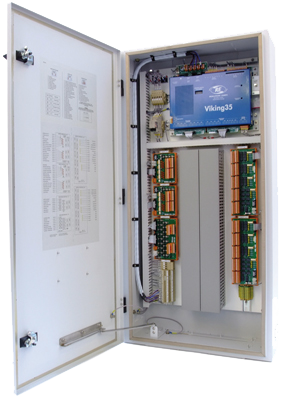

The typical panel shown includes all of the necessary I/O to interface with the engine, generator and ships systems. The Windows based PC software provides an easy interface with the generator control panel; allowing performance to be monitored and parameters changed by authorised personnel.
Control and monitoring panels for specialized applications
Specialised applications such as front-line military vessels require hardware designed to withstand the adverse environment. HEINZMANN Regulateurs Europa is experienced in the design and manufacture of integrated control and monitoring panels designed to perform in ships where vibration and shock etc. are a major factor.
Viking35 Generator Control Panel
At the heart of many generator control panels is the Viking35 ECU which combines the engine management functions together with multi engine electrical and/or mechanical load sharing, via load measure transducers.
Technical data
- Power supply: 24 VDC
- Degree of protection: IP00
Engine Types & Applications
Generators
Overview
MA-01
MA-02
MA-03
PS-01
PS-02
AI-01
AI-02
AI-03
AI-04
AO-01
DI-01
DO-02
DO-03
TB-01
TB-02

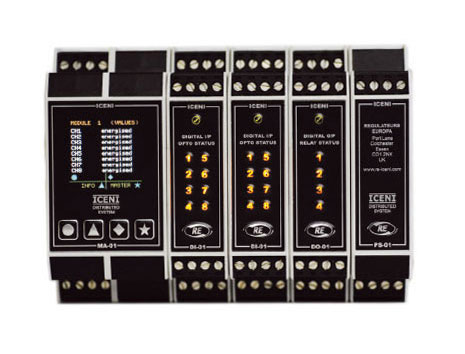

ICENI Distributed I/O System
ICENI Distributed I/O System
- Open protocols to PLCs, PCs etc.
- Extended temperature range (-20 ... +70 °C)
- Inbuilt user interface for commissioning and support
- Robust construction
- Independent electrical isolation
- Redundant power supply capability
- “Plug and Play” automatic configuration
- Cost-effective solution for a wide range of applications
More information
Master Module ICENI/MA-01
The module enables the ICENI distributed system to be connected as a slave node onto an RS-485 Modbus RTU network.
Technical data
- Max no. of I/O modules: 16
- General: Modbus RTU
Master Module ICENI/MA-02
The module enables the ICENI distributed system to be connected as a slave node onto a CANopen network.
Technical data
- Max no. of I/O modules: 16
- General: CANopen

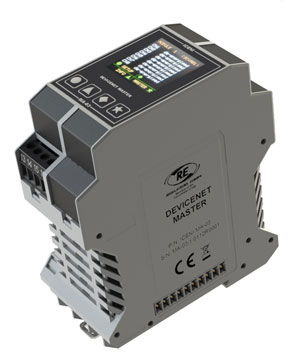

Master Module ICENI/MA-03
The module enables the ICENI distributed system to be connected as a slave node onto a DeviceNet network.
Technical data
- Max no. of I/O modules:
- General: DeviceNet
Power Supply Module ICENI/PS-01
The module provides a stabilised supply for the distributed system.
Technical data
- Max no. of I/O modules: 16 [subject to unit consumption]
- General: Single operation
Power Supply Module ICENI/PS-02
This module provides a redundant stabilised supply for the distributed system.
Technical data
- Max no. of I/O modules: 16 [subject to unit consumption]
- General: Redundant supply operation
Analogue Input Module ICENI/AI-01
The module provides four, individually isolated input channels, for monitoring field sensors [pressure, level, position, etc.].
Technical data
- Number of inputs: 4 inputs, individually isolated
- General: 4 channel, 4-20 mA

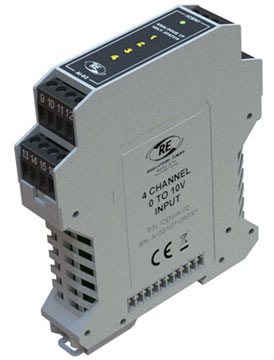

Analogue Input Module ICENI/AI-02
The module provides four, individually isolated input channels, for monitoring field voltage sensors [level, position, etc.].
Technical data
- Number of inputs: 4 inputs, individually isolated
- General: 4 channel, 0 - 10 VDC
Analogue Input Module ICENI/AI-03
The module provides four isolated input channels for monitoring high field temperature sensors [exhaust, boiler, flare, etc.].
Technical data
- Number of inputs: 4 inputs
- General: 4 channel, thermocouple
Analogue Input Module ICENI/AI-04
The module provides four isolated input channels for monitoring field temperature sensors [fluids, bearings, motor windings, etc.].
Technical data
- Number of inputs: 4 inputs
- General: 4 channel, RTD
Analogue Output Module ICENI/AO-01
The module provides four loop powered, individually isolated output channels, for interfacing to field devices [panel meters, control valves, actuators, etc.].
Technical data
- Number of outputs: 4 individually isolated outputs
- General: 4 channel, 4-20 mA
Digital Input Module ICENI/DI-01
The module provides eight, individually powered, digital input channels for monitoring field devices [position switches, level sensors, operator inputs, etc.].
Technical data
- Number of inputs: 8 individually isolated inputs
- General: 8 channel, 24 VDC

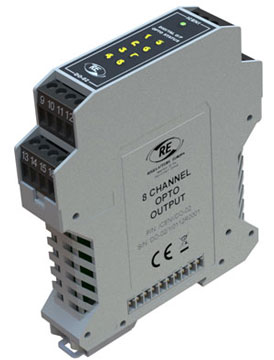

Digital Output Module ICENI/DO-02
The module provides eight, individually isolated, electronically switched output channels, for controlling field devices [indicators, actuators, audible alarms, etc.].
Technical data
- Number of outputs: 8, individually isolated outputs
- General: 8 channel, 24 VDC

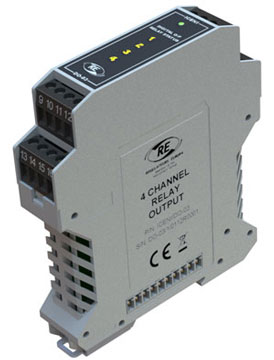

Digital Output Module ICENI/DO-03
The module provides eight, individually isolated, electronically switched output channels, for controlling field devices [indicators, actuators, audible alarms, etc.].
Technical data
- Number of outputs: 4 changeover contacts
- General: 4 channel, relay output

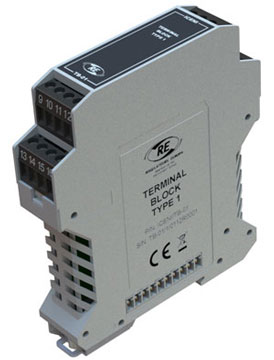

Terminal Block Type 1 Module ICENI/TB-01
The module provides eight independent signal pathways routed from one side of the module to the other. It can assist to simplify the routing of field wiring.
Technical data
- Number of inputs: 8 signal paths
Terminal Block Type 2 Module ICENI/TB-02
The module provides two signal pathways each with four interlinked terminals routed from one side of the module to the other. It can assist to simplify the routing of field wiring.
Technical data
- Number of inputs: 2 signal paths
