Advanced systems for engines, turbines, and tomorrow
The range of hydraulic actuators offered by HEINZMANN Regulatueurs Europa in the HEINZMANN portfolio is built on nearly seventy years of expertise in hydraulic governing. Customers in the industrial, marine and rail traction sector acknowledge these actuators for high reliability and durability along with excellent performance.

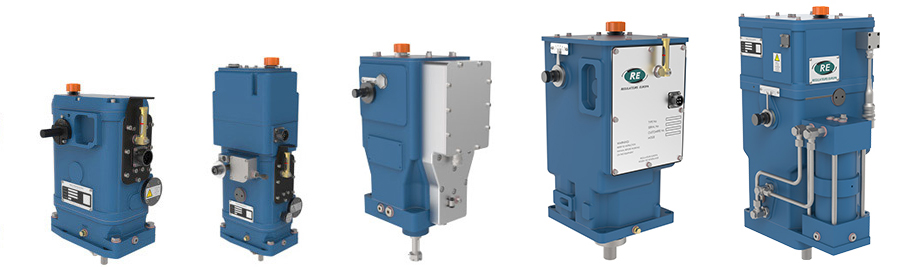

Hydraulic Actuators
RE 2221-1G
RE 2231-1GH
RE 2800-1G
DA 2800
RE 2222-3G
RE 2223-3G
RE 2232-3G
RE 2233-1G
The range of hydraulic actuators offered by REGULATEURS EUROPA in the HEINZMANN portfolio is built on nearly seventy years of expertise in hydraulic governing. Customers in the industrial, marine and rail traction sector acknowledge these actuators for high reliability and durability along with excellent performance.
All models are designed to be controlled by digital controllers VIKING35, DC 8 or XIOS. Alternatively, they can interface with other controllers as part of a customised engine management system by REGULATEURS EUROPA
The 2221 is a proportional actuator where the position of the output shaft is proportional to the electrical input signal 0-1 A. This actuator is typically used in medium/high-speed diesel engines in generator systems or locomotives.
Technical data
More information
Diesel Engines
Gensets
Locomotives

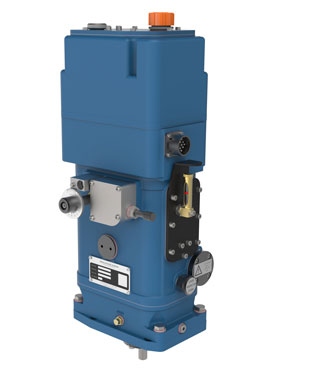

Steam TurbinesProportional actuator featuring a mechanical-hydraulic governor as a ballhead backup in the case of a power failure or controller fault, providing various manual speed setting options. Popular actuator model for marine propulsion engines and other applications where common mode failures must be minimised.
Technical data
More information
Diesel Engines
Ships GensetsThis model is a compact hydraulic proportional actuator used in combination with the Viking range from RE or governors from other manufacturers. It is completely interchangeable with actuators from the UG range.
Technical data
Diesel Engines Gensets

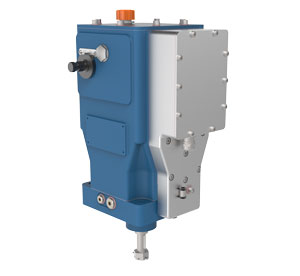

Industrial PlantsCompact hydraulic proportional actuator based on the 2800 series actuators with an integrated amplifier. The amplifier boosts the output signal from 0-200 mA to 0-1 Amp or from 4-20 mA to 0-1 Amp. This allows to use the DA2800 actuator with different non-RE controllers of other manufacturers
Benefits:
Proportional actuator featuring a two-stage, high stiffness, backlash-free hydraulic servo mechanism for best possible control on larger engines requiring increased work outputs. Option for start/boost pressure fuel limiter and/or a mechanical-hydraulic governor as a ballhead backup.
Technical data
More information
Diesel Engines Gensets ShipsProportional actuator featuring a two-stage, high stiffness, backlash free hydraulic servo mechanism for best possible control on large medium-speed engines. Option for start/boost pressure fuel limiter and/or a mechanical hydraulic governor as a ballhead backup.
Technical data
Diesel Engines Gensets ShipsProportional actuator featuring a two-stage, high stiffness, backlash-free hydraulic servo mechanism for best possible control on larger engines requiring increased work outputs. Option for start/boost pressure fuel limiter and/or a mechanical-hydraulic governor as a ballhead backup.
Technical data
Diesel Engines Gensets ShipsProportional actuator featuring a two-stage, high stiffness, backlash free hydraulic servo mechanism for best possible control on large medium-speed engines. Option for start/boost pressure fuel limiter and/or a mechanical hydraulic governor as a ballhead backup.
Technical data
Diesel Engines Gensets Ships
